Wired Mechanical Door Chimes
220V Wired Mechanical Door Chime | Model DALE-WMC220-BK
ModelDALE-WMC220-BKColor / finishBlack
A non-smart mechanical ding-dong chime for traditional 220V electrical and hardware channels.
Select a model finish
- Working voltage
- 220V only
- Sound
- Ding-Dong
- Power consumption
- Less than 40W
- Volume
- 80 dB
- Product size
- 101 × 166 × 36 mm
- Product weight
- 257 g
- Housing material
- ABS

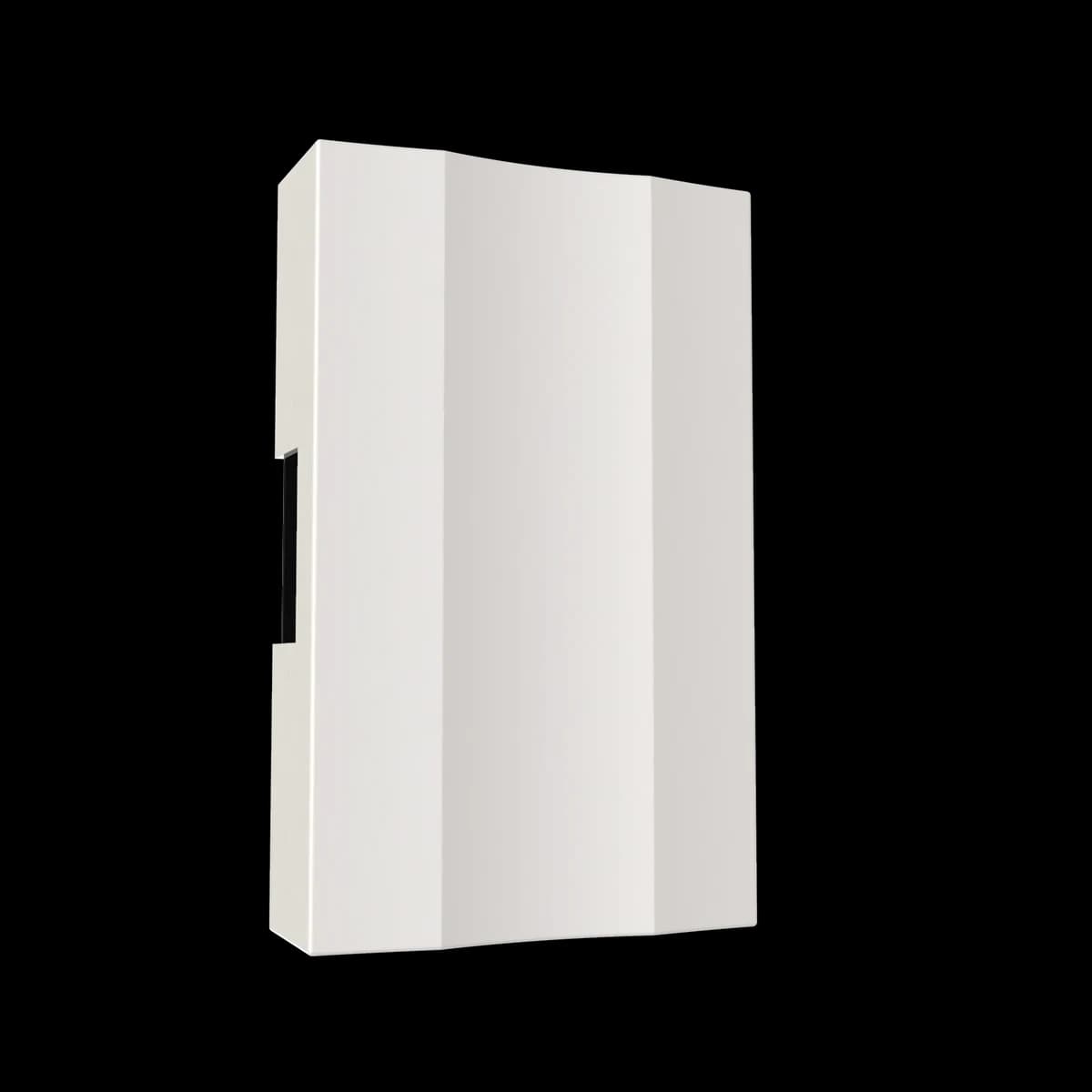

Product views

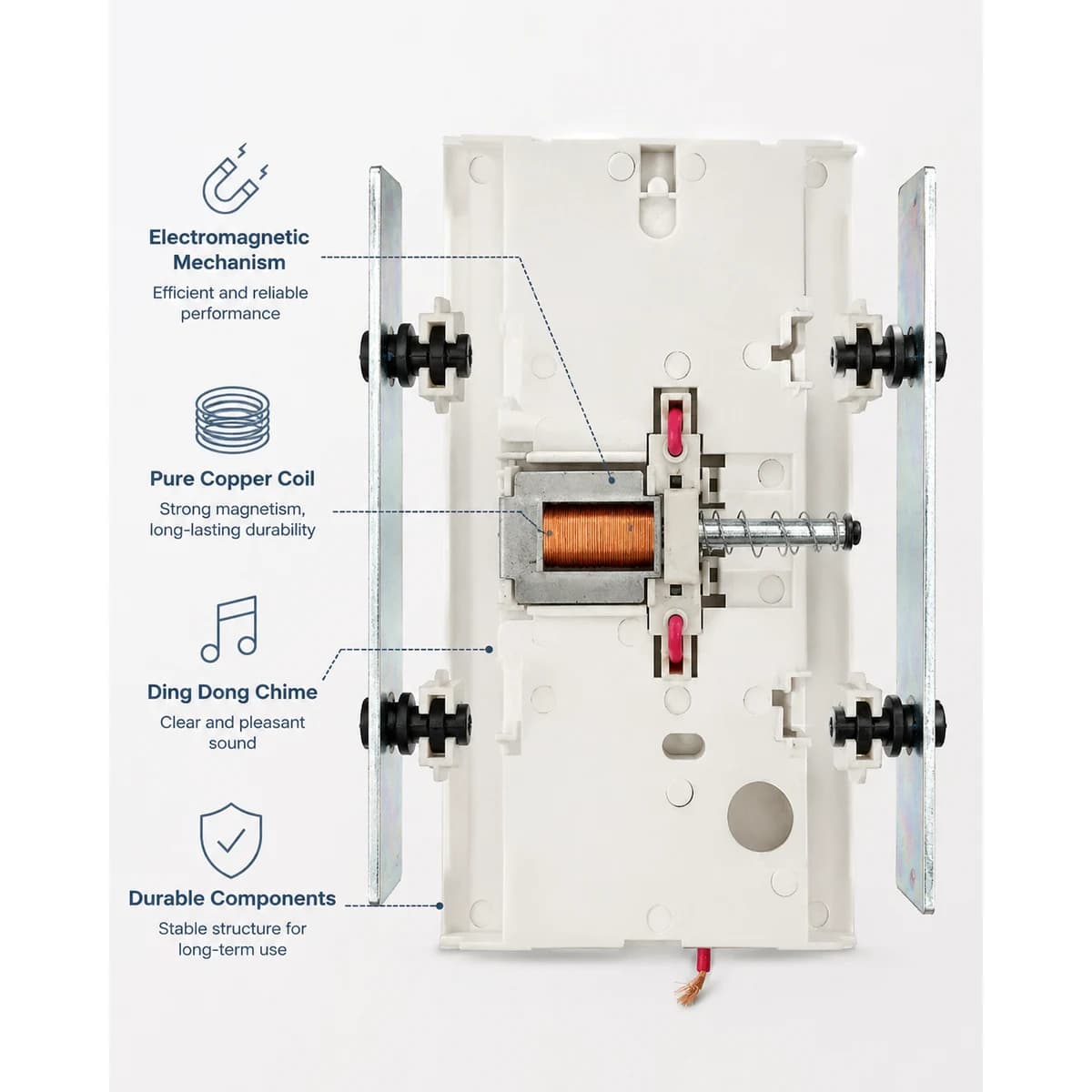

Complete product and construction details

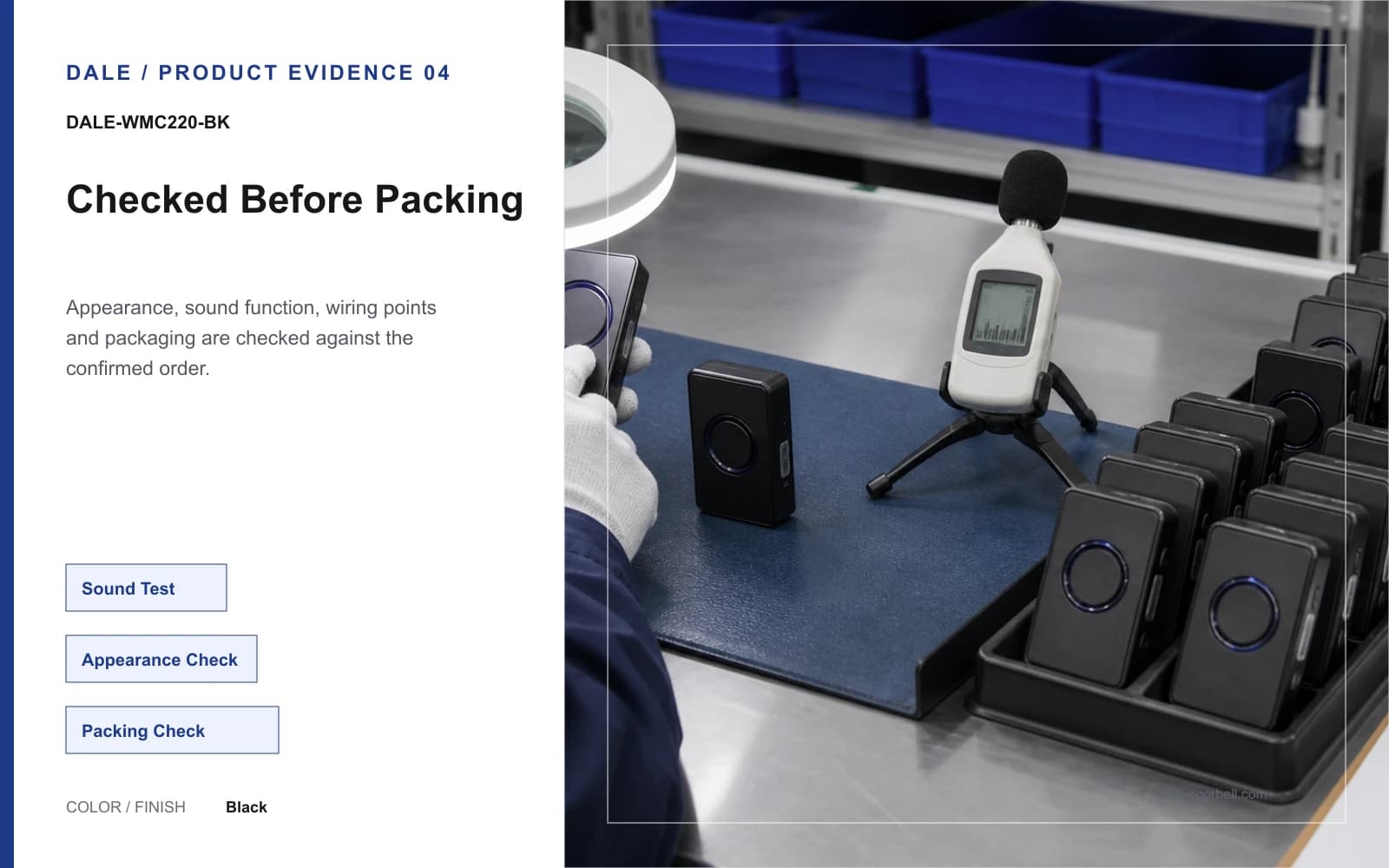

Buyer detail boards
Five screens built around purchase questions
Each board combines the catalog model with exact English copy and visible proof cues.
Specifications
Model specifications
- Product type
- Wired mechanical ding-dong chime
- Working voltage
- 220V only
- Sound
- Ding-Dong
- Power consumption
- Less than 40W
- Volume
- 80 dB
- Product size
- 101 × 166 × 36 mm
- Product weight
- 257 g
- Housing material
- ABS
- Coil material
- Pure copper
- Mixed colors
- Not available
- Certifications
- Not available currently
- Color / finish
- Black
Procurement
Order information
- Neutral packaging MOQ
- 300 pcs
- Custom packaging MOQ
- 600 pcs
- Black finish MOQ
- 2,040 pcs
- Wood-grain finish MOQ
- 2,040 pcs
- Sample
- Available by request; freight collect
- Neutral packaging lead time
- 3–30 days
- Custom packaging lead time
- 14–45 days
- Trade term
- EXW
Packaging
Pack and carton data
Color box packaging
- Color box size
- 107 × 170 × 43 mm
- Carton quantity
- 60 pcs / carton
- Carton size
- 44 × 34 × 36 cm
- Carton material
- 5-layer kraft carton
- G.W. / N.W.
- 17.3 kg / 15.3 kg
Important notes
Before confirming an order
- This model is 220V only.
- Installation must follow local electrical safety requirements.
- No certification documents are available currently.
- Mixed-color orders are not available.
- EXW quotations exclude tax and freight.
Model preselected
Request a quote for DALE-WMC220-BK
Share your target market, quantity, packaging needs and timing. The current API and lead workflow remain compatible.
